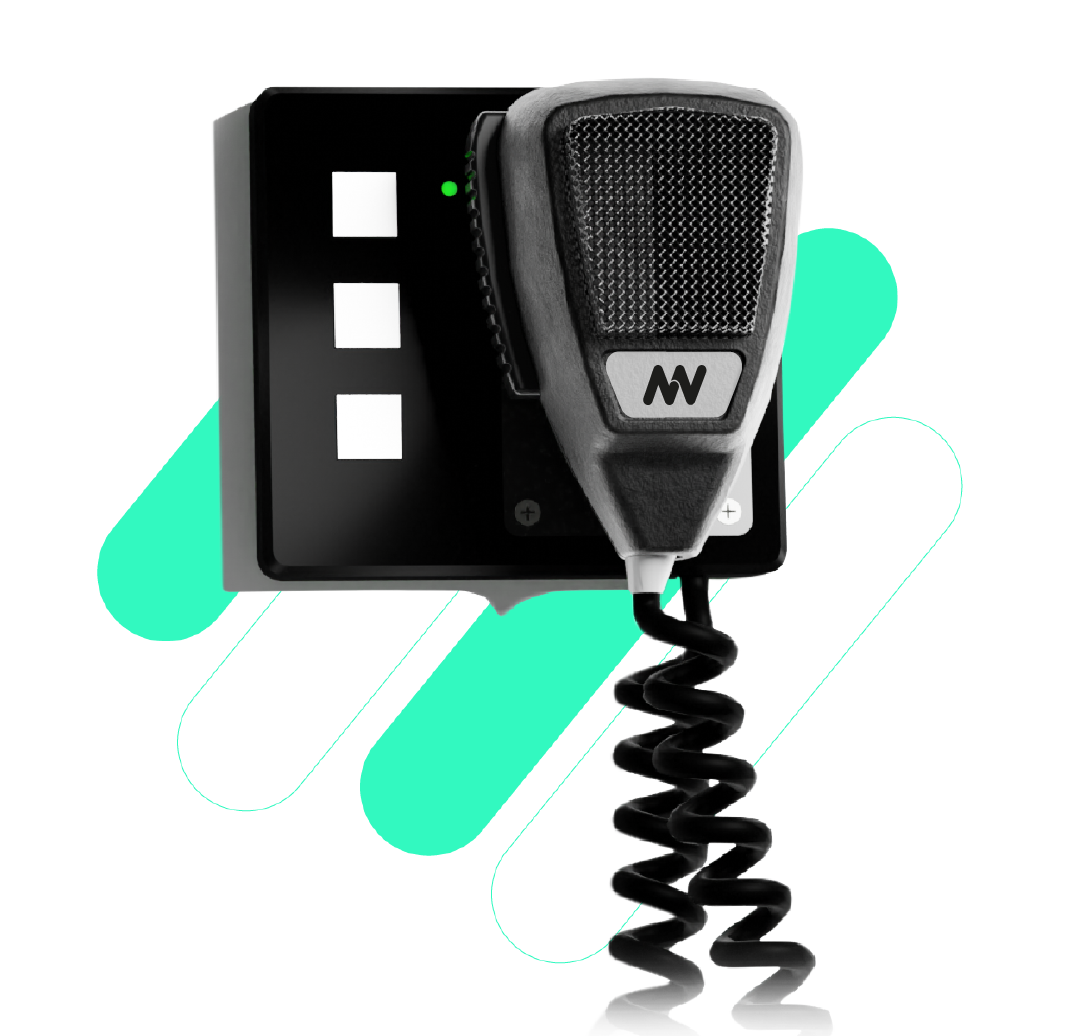

micnode mini3
Compact three button microphone station
AVAILABLE TO ORDER
The micnode mini3 is an affordable and simple three-zone push-to-talk microphone paging station. The design ensures compatibility with QSC™ Q-SYS paging systems.
It supports modern audio standards like AES67, RTP, and VoIP. This allows for reliable network communication. It also adds extra encryption to protect against eavesdropping.
It has a secure enclave that ensures safe connections to major cloud providers. It functions instantly with Simpleway CX. Equipped with IPv6 support, the micnode mini3 offers future-proof network integration, delivering enhanced security, reliability, and performance in any modern IT infrastructure.
Compatible with Q–SYS Process audio using built–in processing engine
Keep your audio streams private by adding encryption to industry standard audio protocols such as AES67
Rely on your audio devices to meet the latest IT and security standards. They also enable IPv6 for current networks.
Securely connect your infrastructure to cloud systems such as Simpleway CX cloud
Key highlights
3 zones with status LED
The micnode mini3 is an easy to deploy
and easy to use three–zone microphone station.
Third-party compatibility
Can be used as part of Q–SYS paging system.
Security is a top priority
Can communicate over the network using all contemporary audio standards such as AES67, RTP or VoIP. It can add an extra encryption layer to prevent eavesdropping by malicious actors.
Connect with cloud
A secure–enclave element built in enables secure connectivity to all major industry cloud providers. The device can be used with Simpleway CX cloud out of box.
| Product | micnode mini3 |
| Order ID | WA005 |
| Description | Compact three button microphone station |
| Audio | Dynamic microphone Configurable microphone preamplifier with -8 dB to 34 dB gain AD Converter: 24 Bit @ 48 kHz 117 dB - A Dynamic Range - 0.00x % THD+N |
| Connectivity | 1 x RJ45 input for connecting a dynamic microphone 1 x LAN RJ45 1000 Mbps with PoE |
| DSP | 60+ Component library API library |
| User Interface | Status LED 3 x Zone select button with indicator LED's Web-based configuration interface Cloud-connected |
| Security | Secure boot Encrypted firmware Secure enclave chip Optional AES256–GCM encryption for AES67 |
| Compatibility | Q–SYS, Bosch PRAESENSA |
| Environmental | Operating temperature range 32 °F – 122 °F (0 °C – +50 °C) Storage temperature range 14 °F to 140 °F (–10 °C – +60 °C) |
| Power | IEEE 802.3af power over Ethernet (PoE), Power consumption: typical 6W, max. 12W |

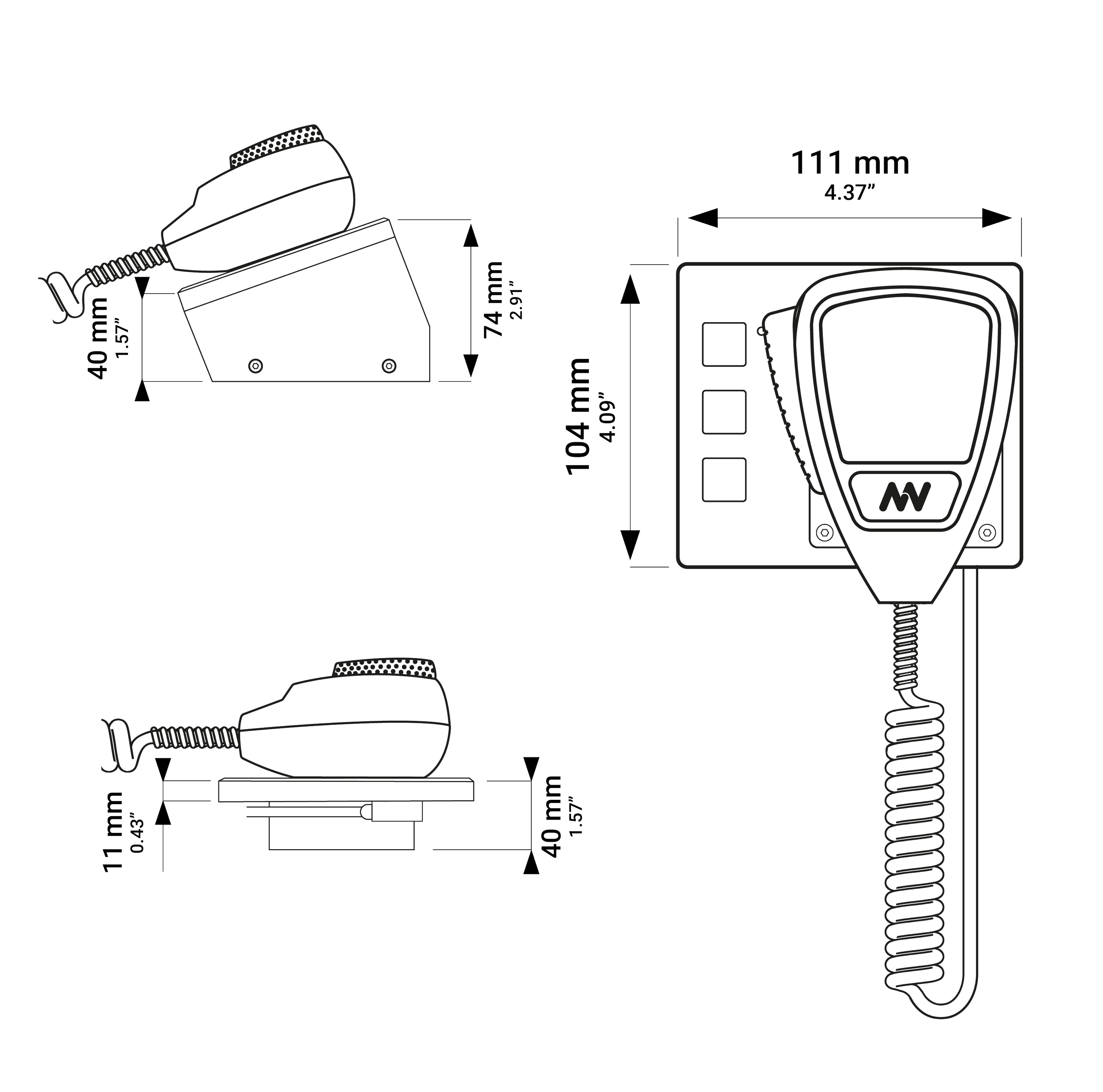

| Dimensions | 111 mm (W) x 40 mm (D) x 103 mm (H) US 2–gang box compatible 900 g without microphone Microphone cable length: min. 80 cm (31.5 “), can be stretched to a length of up to 110 cm (43.3”) |
| Accessories | Mounting kit, Handheld microphone, Desk stand (optional) |
Specifications
Visit the Download Center for product resources
Bridging the Gap Between Sound and Vision
While nnounce devices are fully integratable with other PA ecosystems, such as Q-SYS, their true power emerges when perfectly paired with Simpleway’s digital signage and public address cloud software, creating a uniquely cohesive and effective communication experience.
Retail, hospitality, educational, healthcare sectors, warehouses, company campuses, and more can adopt the nnounce platform with Enterprise CX system, meeting diverse communication needs and empowering synchronized messaging across environments.
nnounce products paired with Airport CX elevate the passenger experience for airports of all sizes. Operators can instantly trigger announcements for specific flights or trips, with displays automatically updating to show accurate, real-time information, keeping travelers informed and enhancing their journey.
For ground public transport, including trains, ferries, and buses, the Transit CX platform unified with nnounce devices allows for robust and timely management of location-specific announcements and visual information updates throughout entire transportation networks.
Explore our whole nnounce family
